STANDARD
| OPTIONAL
|

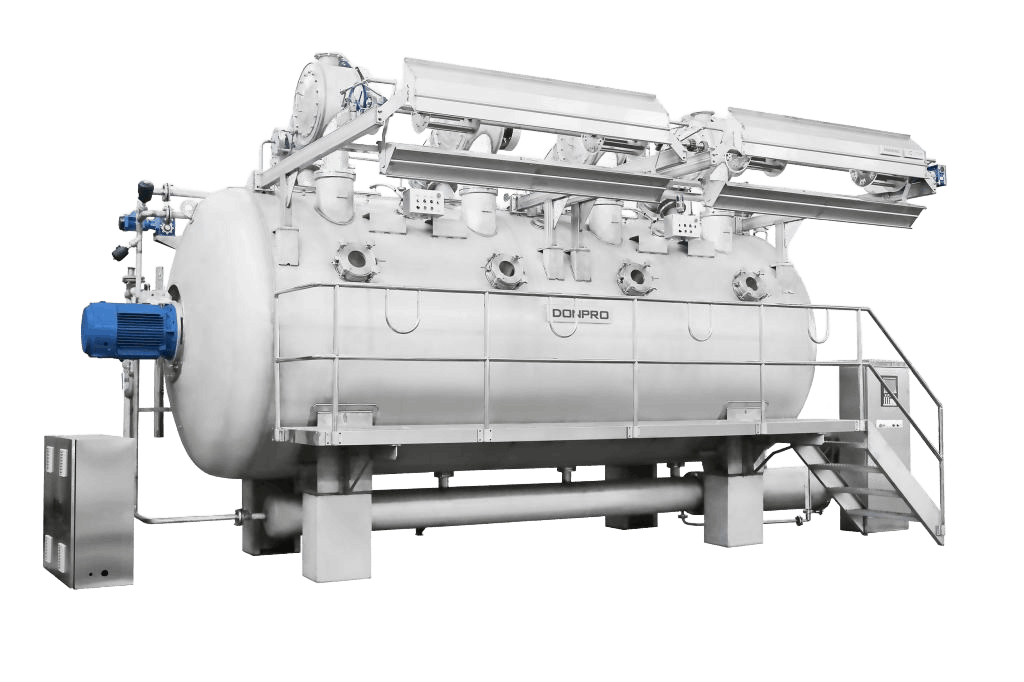

MULTI FLOW ECODYE
Suitable for Nylon lace, woven TC , TR, cotton plain weave, cotton pique, polyester chiffon, satin chiffon, CEY, etc.
MULTI FLOW ECODYE
TECHNICAL FEATURES
Inside-Blower Design
The inside blower with frequency inverter and multi pipe network design make the air volumetric of each tube even, also significantly reduces the blower power consumption and noise.
Blower Maintenance Device
The innovative design of the blower maintenance device facilitates the maintenance and replacement of parts and saves enormous maintenance time.
360° Spray Cleaning System
The effective 360°spray cleaning system cleans the main kier and avoid the color and chemical residue with very low water consumption.
Flexible Storage Chamber
The high efficient adjustable storage chamber device can reduce the chamber capacity up to 60%, at the same time this device can guarantee optimum guidance for light and heavy goods.
Large Capacity Design
The newly designed winch and internal fabric plaiter let the fabric run more smoothly and organize the fabric to stack neatly inside the chamber, which avoids tangling, also shorten the circulating time and allow a higher capacity.
Effective Unloading Device
The unloading device is made up of stainless steel roller and optional rubber bars. These rubber bars which are easy to replace can increase adhesion and improve the efficiency of the unloading.
Self-Cleaning Filter
Self-cleaning filter separates the lint from the liquor during the process and flushes them into the drain, fully automatically .
CONFIGURATIONS

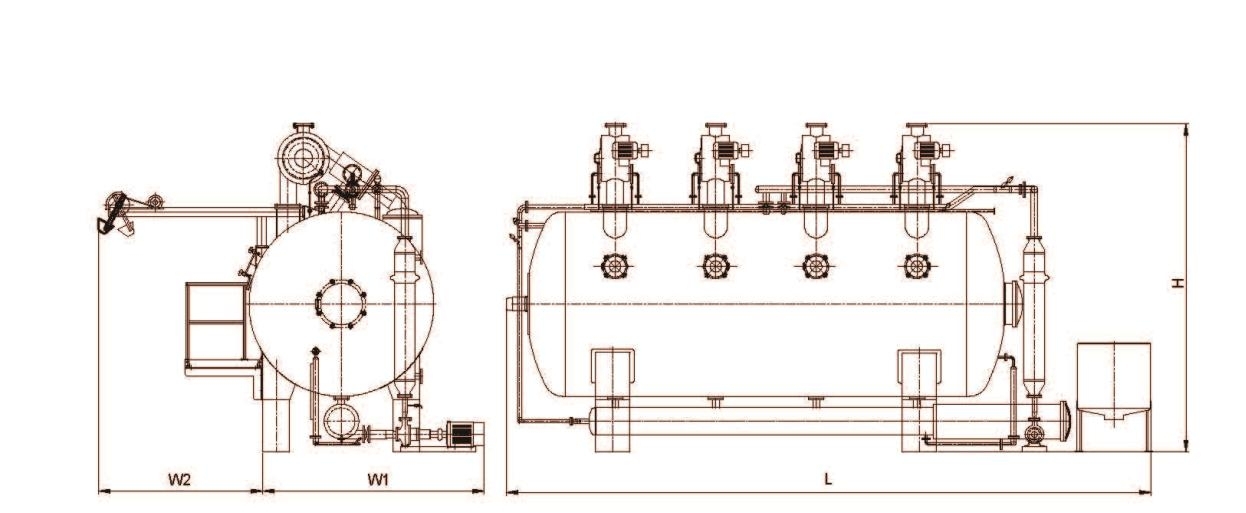

SPECIFICATIONS
Note: Specifications of the above machines are only for reference. The company reserves the right of alteration.
