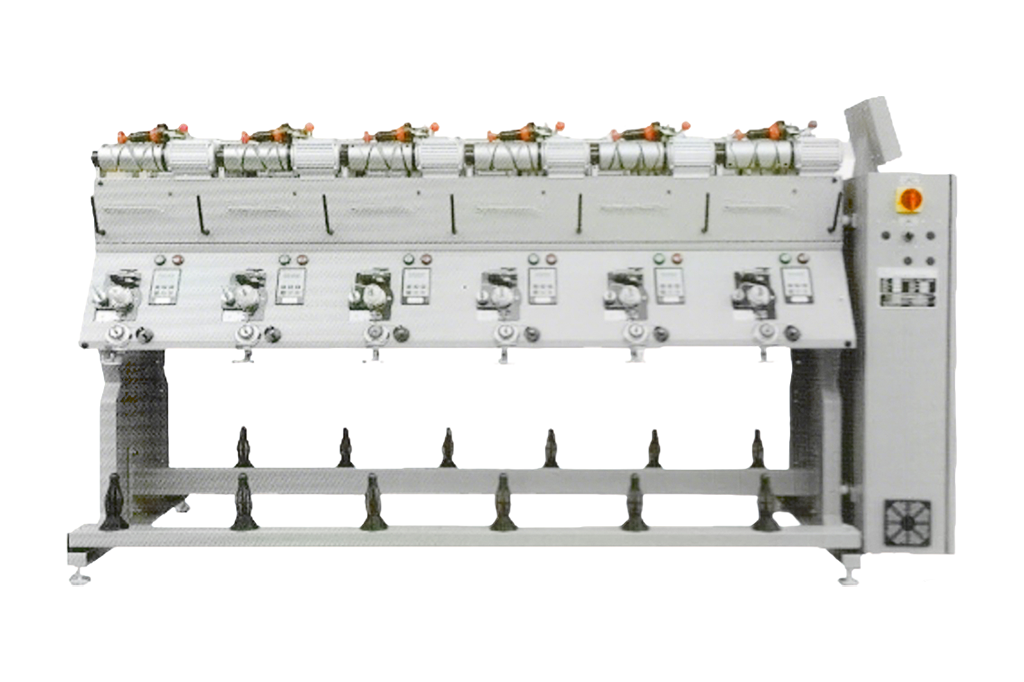

DBHW High efficiency hard winding machine

Model

DBHW

Grooved drum

O/D 82mm, pitch 2.5, symmetrical

Take up

0° ,3°30' ,4°20' ,5°57' ,9°15' (only for expansion spool holder)

Automatic length fixing

Electronic winding length setting based on finished product, max.999999m

Slow start

For smooth start and better winding quality

Electric waxing/equipped with adjustable tension plate

Square hole waxing can be used, equipped with weight piece (1 set/head) for even waxing

Weight adjustable tension plate

Yarn tension can be adjusted by rotating angle. Equipped with weight piece to prevent yarn vibration

6 groove yarn clearer

The yarn clearer for gap needed can easily be chosen according to yarn type

Configuration

12 heads/section , Max. 10 sections/set(120 heads)

Motorization

1 coaxial 3 phased AC motor per head, controlled by 1 inverter in each line of 60 heads

Max. speed

1100m/min. The speed of each side can be set separately for winding

Traverse

Standard152mm

Balancer

The winding pressure can be controlled by balance of spring

Yarn detector

With optical sensor

Max. package

Ø 250mm

Start/stop big button switch

By film switch, LED real time display of winding mater general control for single side by LCD

Radial anti patterning system

The anti-patterning parameter is controlled by computer

Reciprocating blowing sucking cleaner

1100W motor power of cleaner

Absorbed power

90W per head at max. speed, excluding the motor power of cleaner

Power supply

3 phased 400V±10%, 50/60Hz

Machine(12 heads) weight and dimension

350kg 2250mm(length)X850mm(width)X1300mm(height)

Weight for cleaner

132kg according to head quantity

Weight and dimension for electric box

45kg 700mm(length)X300mm(width)X1320mm(height)
