OVER FLOW ECODYE

Suitable for towel, bath towel, and flannel products, ensuring consistent color, excellent hand feel, and fluffy texture.

OVER FLOW ECODYE
OVER FLOW ECODYE
OVER FLOW ECODYE

TECHNICAL FEATURES

Big Capacity

Big Capacity

The maximum single-tube capacity can reach 400KG.
The Redesigned Pipeline And Heat Exchanger

The Redesigned Pipeline And Heat Exchanger

The redesigned pipeline and heat exchanger ensure smooth operation of the dye liquor, improve the exchange rate of the dye liquor, and reduce the occurrence of fiber blockage.
Unique Three-Stage Filtration System

Unique Three-Stage Filtration System

The unique three-stage filtration system ensures reliable operation of the heat exchanger, main pump, and nozzles, reducing maintenance frequency.
First filter: manual basket filter.
Second filter: manual filter which protects the impeller of the main pump.
Third filter: automatic self-cleaning filter, removes free impurities from the dye liquor in real time and discharges them promptly.
Extra Large 300mm Diameter Nozzle

Extra Large 300mm Diameter Nozzle

Heavy towel can run smoothly, even the width can reach to 3.3 meters.
Extra Big Fabric Chamber

Extra Big Fabric Chamber

The width of "Storage chamber" is 1500mm, which is the widest in this industry. It can truly achieve 400kgs per chamber.
Adjustable Nozzle And Storage Chamber

Adjustable Nozzle And Storage Chamber

Available for towel dyeing.
Special Rinsing Method

Special Rinsing Method

The inside tank is not stained with fiber
Second Circulation System

Second Circulation System

Reduce dyestuff & chemical's dosing time and keep the best dyeing evenness.
Quick Collecting Device

Quick Collecting Device

Reduce dyeing liquid's circulation time and rinsing time.

CONFIGURATIONS

STANDARD

  • Main tank & liquor carrying parts are made of Stainless steel 316L

  • Automatic touch screen controller

  • Working temperature:140

  • Minimum liquor ratio:1:4.5

  • Max. fabric running speed up to 450m/min

  • Auto seam detector

  • Inverter controlled main pump motor

  • Proportional heating and cooling

  • Powder coating Stainless steel control cabinet

  • Analog water level sensor

  • Programmable automated dosing of dyes and chemicals

  • Analog dosing

  • Electronic flow-meter

  • Water inlet filter


OPTIONAL

  • Multiple control systems available

  •  Second dosing tank

  • Hot water tank, preparation of complete process bath

  • Auto self-cleaning filter

  • The Salt dissolving tank

  • Plaiter with driving system

  • Smart rinsing system

  • PH detecting system

  • PH Doctor PH control system

  • Power drain

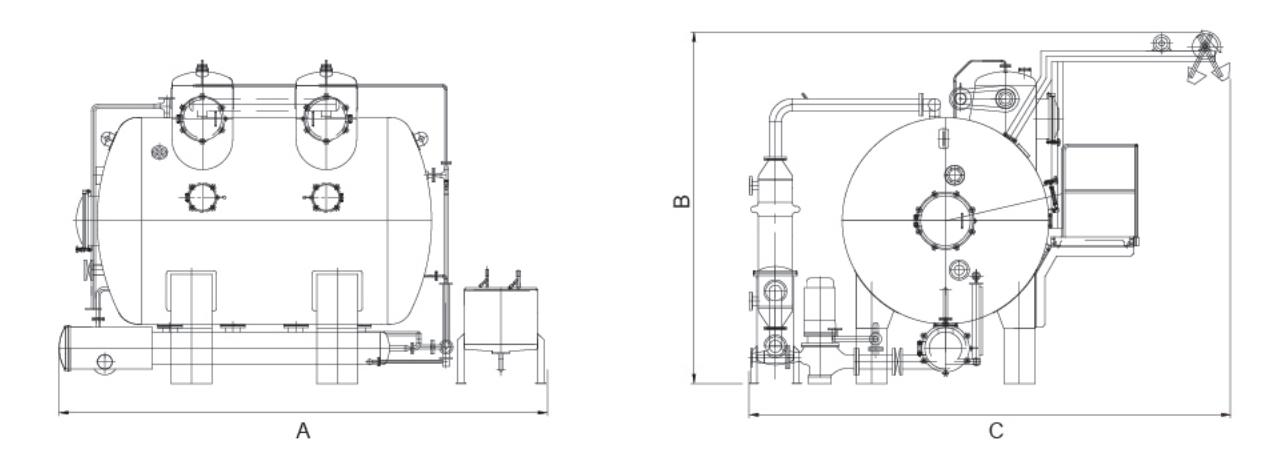

SPECIFICATIONS

SPECIFICATIONS

Note: Specifications of the above machines are only for reference. The company reserves the right of alteration.
